Name: Modular Dual System Design Ion Chromatography Machine with Flow Rate 0.001~12.000mL
Brand: Anhui Wanyi Science and Technology Co., Ltd.
SKU: IC6600
Price: 15,400.00 USD
Availability: InStock

বাড়ি > পণ্য > আয়ন ক্রোমাটোগ্রাফি যন্ত্র >

Modular Dual System Design Ion Chromatography Machine with Flow Rate 0.001~12.000mL

Place of Origin:

Anhui, China

পরিচিতিমুলক নাম:

Wayeal

সাক্ষ্যদান:

Model Number:

IC6600

আমাদের সাথে যোগাযোগ

একটি উদ্ধৃতি অনুরোধ করুন

Modular Dual System Design Ion Chromatography Machine with Flow Rate 0.001~12.000mL

পণ্যের বিবরণ

পরিমাণগত পুনরাবৃত্তিযোগ্যতা:

≤0.5%

প্রবাহের হার স্থিতিশীল:

~0.1%

প্রবাহ হারের পরিসীমা:

0.001～12.000ml/মিনিট

লিনিয়ারিটি:

>0.999

পাম্প চাপ:

0~42Mpa

পাওয়ার সাপ্লাই:

220V, 50~60Hz

গুণগত পুনরাবৃত্তিযোগ্যতা:

≤0.1%

কাজের তাপমাত্রা:

10~40°C

পেমেন্ট ও শিপিংয়ের শর্তাবলী

Minimum Order Quantity

1 Unit

মূল্য

Negotiate

Packaging Details

Wooden Case

Delivery Time

35 days

Payment Terms

T/T

Supply Ability

30 Units/Month

সম্পর্কিত পণ্য

IC6600 Ion Chromatography Instrument With Reagent-free Eluent Generator

সেরা দাম পান

High Precision Ion Chromatography Instrument for Anions Cations Simultaneously Analysis

সেরা দাম পান

2 Columns Capacity Ion Chromatography Instrument With 120 Injection Positions

সেরা দাম পান

Modular Dual System Design Ion Chromatography Machine with Flow Rate 0.001~12.000mL

সেরা দাম পান

আমাদের সাথে যোগাযোগ

+8613586823203

export@wayeal.com.cn

এখনই যোগাযোগ করুন

পণ্যের বর্ণনা

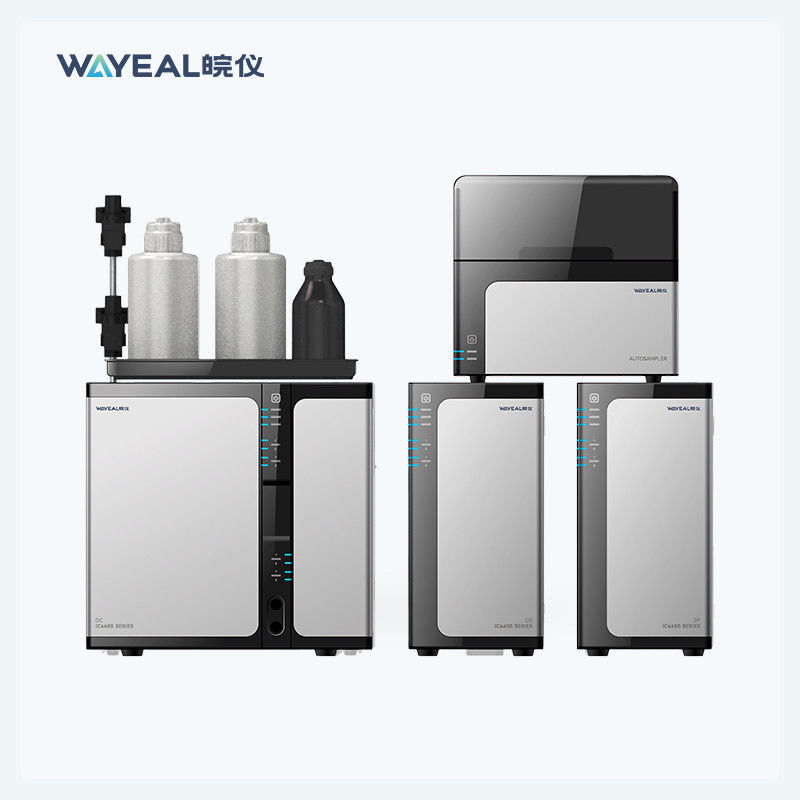

Introduction of Ion Chromatography Instrument

The Ion Chromatography Instrument is a state-of-the-art analytical device designed to provide precise and reliable ion separation and quantification for a wide range of applications. The IC6600 series multi-functional ion chromatograph is a high-end ion chromatography system launched by Wayeal. Featuring a brand-new modular design, it offers exceptional flexibility, more comprehensive functionality, and simpler operation. This system can be configured with a conductivity detector, an amperometric detector, or a UV detector to enable the detection of all ion chromatography-related analytes, including conventional anions and cations, cyanide, iodide, sugars, small-molecule organic acids, hexavalent chromium, transition metals, and more.

Technical Parameters of IC6600 Ion Chromatography Instrument

Product Name	Multifunctional Ion Chromatography
Model	IC6600
Working power	220V, 50Hz
Ambient temperature	10-40°C
Relative humidity	20-85%
Qualitative repeatability	≤0.1%
Quantitative repeatability	≤0.5%
Pump flow rate range	0.001~12.000mL/min
Pressure resistance of pump head	0-40MPa
Flow setting error	<0.1%
Flow stability	<0.1%
Pressure display accuracy	0.001MPa
Pressure plusation	<0.25%
Conductivity detector
Baseline noise	≤0.03%FS
Baseline drift	≤0.1%FS
Mini detectable concentration (Cl):	≤0.0001μg/mL
Mini detectable concentration (Li):	≤0.00005μg/mL
Mini detectable concentration (NO3):	≤0.001μg/mL
Mini detectable concentration (Na+):	≤0.001μg/mL
Mini detectable concentration (Ca2+):	≤0.005μg/mL
Conductivity cell volume	≤0.4μL
Conductivity detection range	0-45000μS/cm
Detector resolution	0.00238nS/cm
Conductivity cell temperature setting error	±0.01°C
Conductivity cell temperature display resolution	0.001°C
Conductivity cell temperature control range	Detector temperature zone temperature +5°C-65°C
Conductivity cell temperature control stability	0.05°C
Conductivity cell temperature setting value error	0.1°C/h
Ampere detector
Type	Thin-layer structure, automatic range
Driving voltage range	-2.0V-2.0V
Drive voltage resolution	0.001V
Output signal range	Integral mode: 50pc-200uC DC mode: 1pA-74μA
Noise	Integration mode<30pC DC mode<5pA, DC mode static noise<1pA
Cell material	Titanium
Pool volume	<0.2μL
Maximum pool pressure	0.7MPa
Minimum detectable concerntration	I-0.001μg/mL
Minimum detectable concerntration fructose	0.01μg/mL
UV Detector
Wavelength indication error	0.1nm
Wavelength repeatability	0.1nm
Mini detectable concentration	BrO3-0.0005μg/mL
Mini detectable concentration	CrO42-0.001μg/mL
Qualitative repeatability	≤0.05%
Quantitative repeatability	≤0.3%
Suppressor
Dead volume	50μL
Inhibition capacity	170ueq/min
Pressure resistance	3MPa
Column oven
Temperature range	Room temperature +5°C~70°C
Temperature control stability	0.1°C/h
Error of temperature setting value	0.05°C
Autosampler
Number of samples	≥120 (1.5ml sample bottle)
Temperature	4~30°C
Linear	>0.999
Cross-contamination	<0.01%
